HEAVY DUTY COUNTERBALANCED STACKER

• 1,200-watt drive motor, 4,500-watt lift motor.
• Forks are adjustable to fit most pallets.
• Curtis (US Brand) Controller.
• Famous German brand handle tiller.
• Multi-function display shows the working hours, battery status and low-voltage protection.

*CAPACITY SHEET

LIFTING HEIGHT	ACTAL CAPACITY
below 118''	3,300 lbs
118''-137''	2,640 lbs
137''-157''	2,310 lbs
157''-177''	1,980 lbs

DIMENSIONS

• Overall Length: 104.3"
• Overall width: 39''
• Recommended Aisle Width: 120.9"
• Turning Radius : 61.8"
• Load center : 19.7"

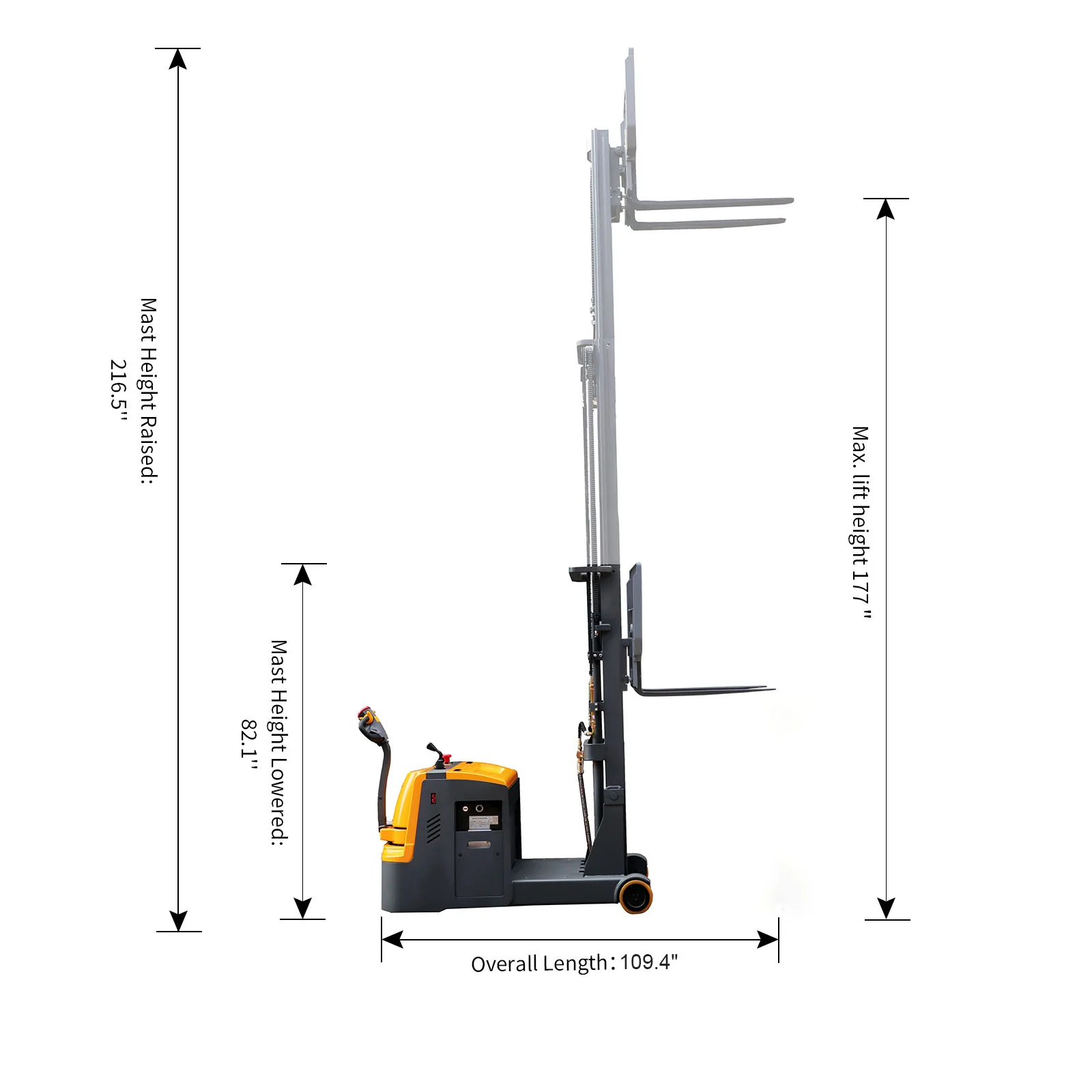

MAST

• Mast Height Lowered: 82.1''
• Max.Lifting height: 177''
• Mast Height Raised :216.5''
• Free Lifting height: 59''

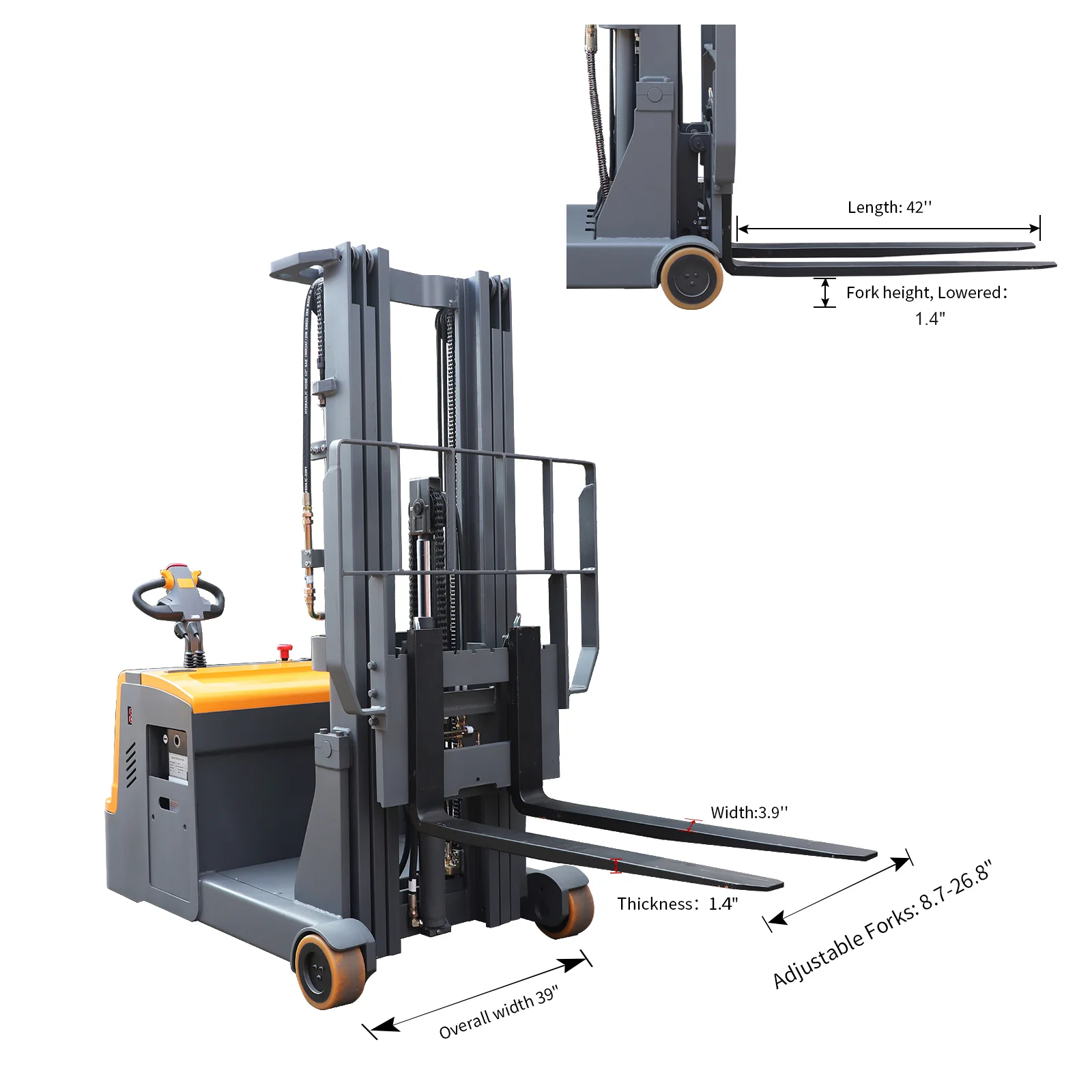

FORKS

• Thickness: 1.3"
• Width: 3.9"
• Length: 42"
• Adjustable Forks: 8.7-26.7"
• Forks Tilt Angle(forward/backward): 3° / 6 °

SPEED

• Travel Speed (laden/unladen): 3.6 /3.7 mile/h
• Lifting Speed (laden/unladen): 0 - 4.7 / 0 - 6.3 inch/s
• Lowering Speed (laden/unladen): 0 - 17.7 inch/s

FEATURES

• Gradeability(laden/unladen): 6%/10%
• 8 hours service per charge with big power lead-acid battery capacity 24V/280AH
• 8 hours charging time
• Long handle structure makes it steering light and flexible
• Vertical driving wheel, driving efficiency, easy installation& maintenance
• AC frequency conversion traction motor, compact structure, good performance
• With emergency stop switch and electricity lock button for safety
• Tilting system forks easy for loading and stacking


SPECIFICATIONS

• Not explosion proof.
• This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the truck once a month even it's not in use.
