• 650-watt drive motor, 2,200-watt lift motor.
• Perfect for approaching racks and trucks, as there are no straddle legs to obstruct to close approach.
• With upright walking function, especially suitable for narrow aisle.
• 2 minutes will replacement thanks to the wheel because of the upper horizontal structure design.
• 4-5 hours service per charge: two 12-volt, 105 Ah rechargeable GEL batteries
• 24V/10A Built-in charger.

*DIMENSIONS

• Overall Length：78.8"
• Overall Width: 33.3"
• Recommended Aisle Width：108.3"/ 9 feet
• Turning Radius:46.1"
• Load Center: 15.7"
• Gradeability(laden/unladen):6%/10%

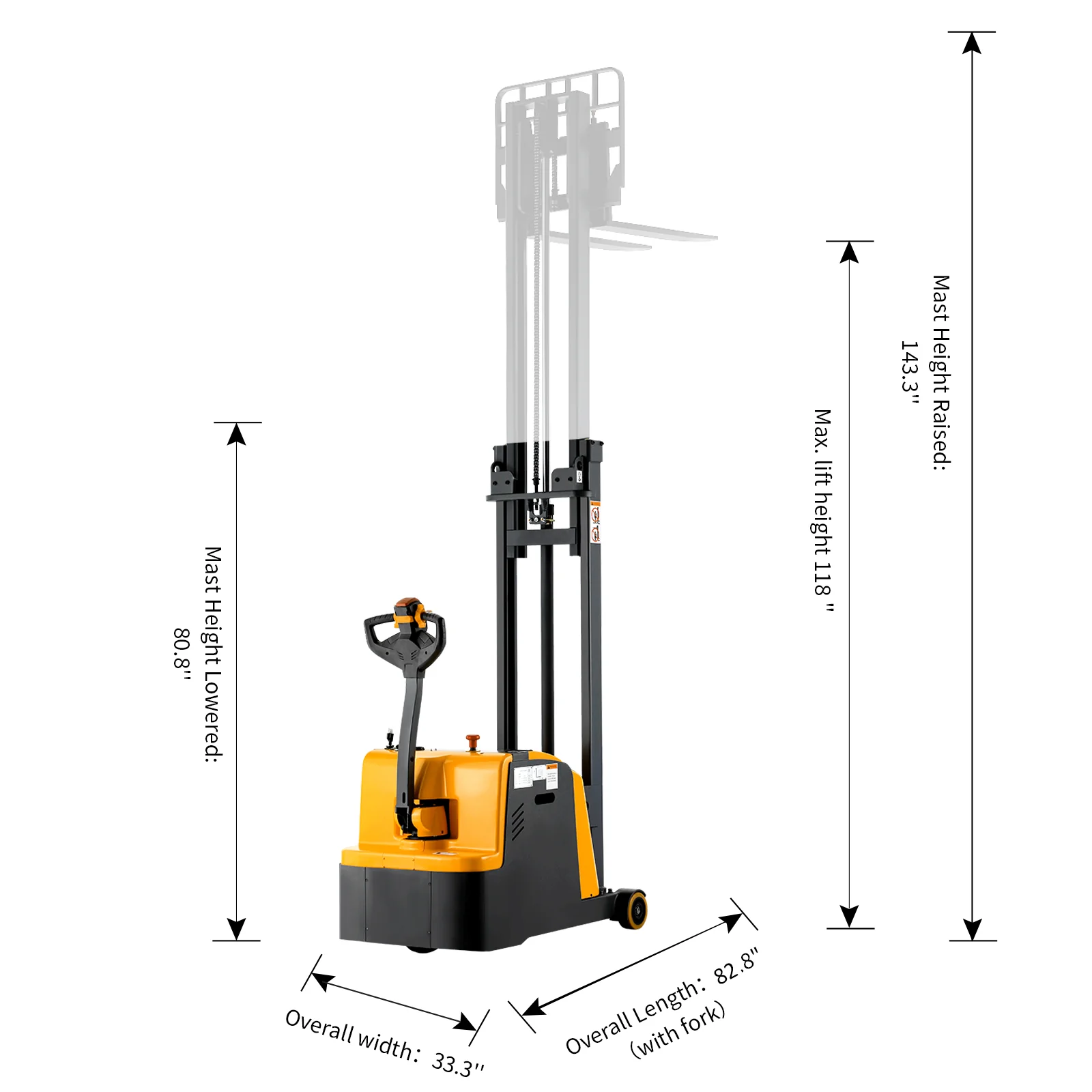

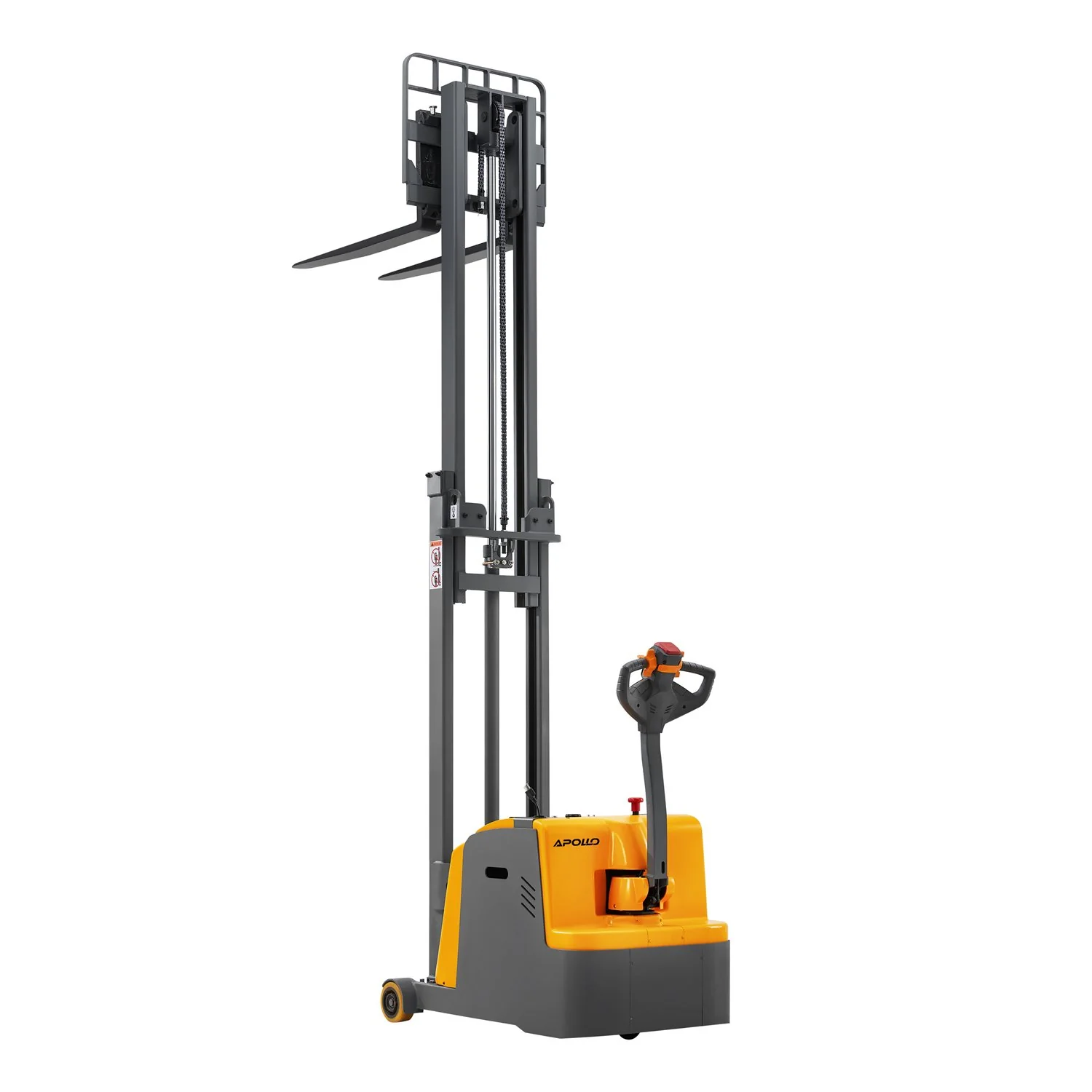

MAST

• Mast Height Lowered: 80.8"
• Mast Lifting Height: 118"
• Mast Height Raised: 143.3"
• Mast tilt(forward/backward):1°/3°

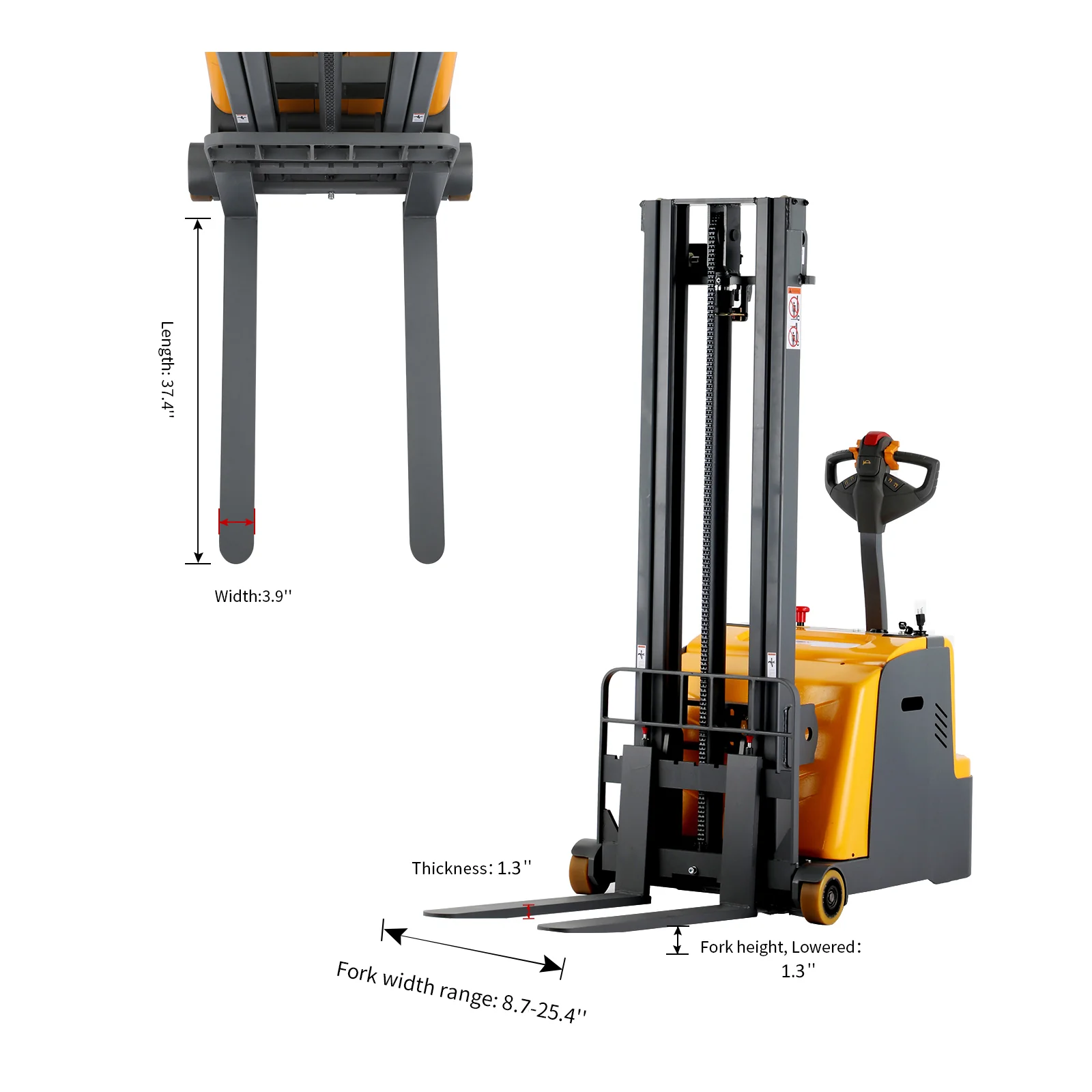

FORKS

• Thickness: 1"
• Width:3.9"
• Length: 37.4"
• Fork width range: 8.6-25.4"

FEATURES

• Long handle structure makes truck steering light and flexible
• Thoughtful mast design for wide viewing angles

SPEED

• Lifting speed(laden/unladen) : 6.7/9.8 mile/s
• Lowering speed(laden/unladen) : 5½/5½ mile/s
• Travel speed(laden/unladen):2½/2.8 mph

SPECIFICATIONS

• Not explosion proof.
• This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.

• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the truck once a month even it's not in use.
• Time to fully charge battery: 8 - 10 hrs
