MANUAL PUSH AND PULL, POWERED LIFTING AND LOWERING

• 1,500-watt lift motor.
• Special chain steering system.
• Easy operation for lifting and lowering.
• Strong battery with 12V/100AH capacity and over charge design.
• Adjustable forks & straddle legs

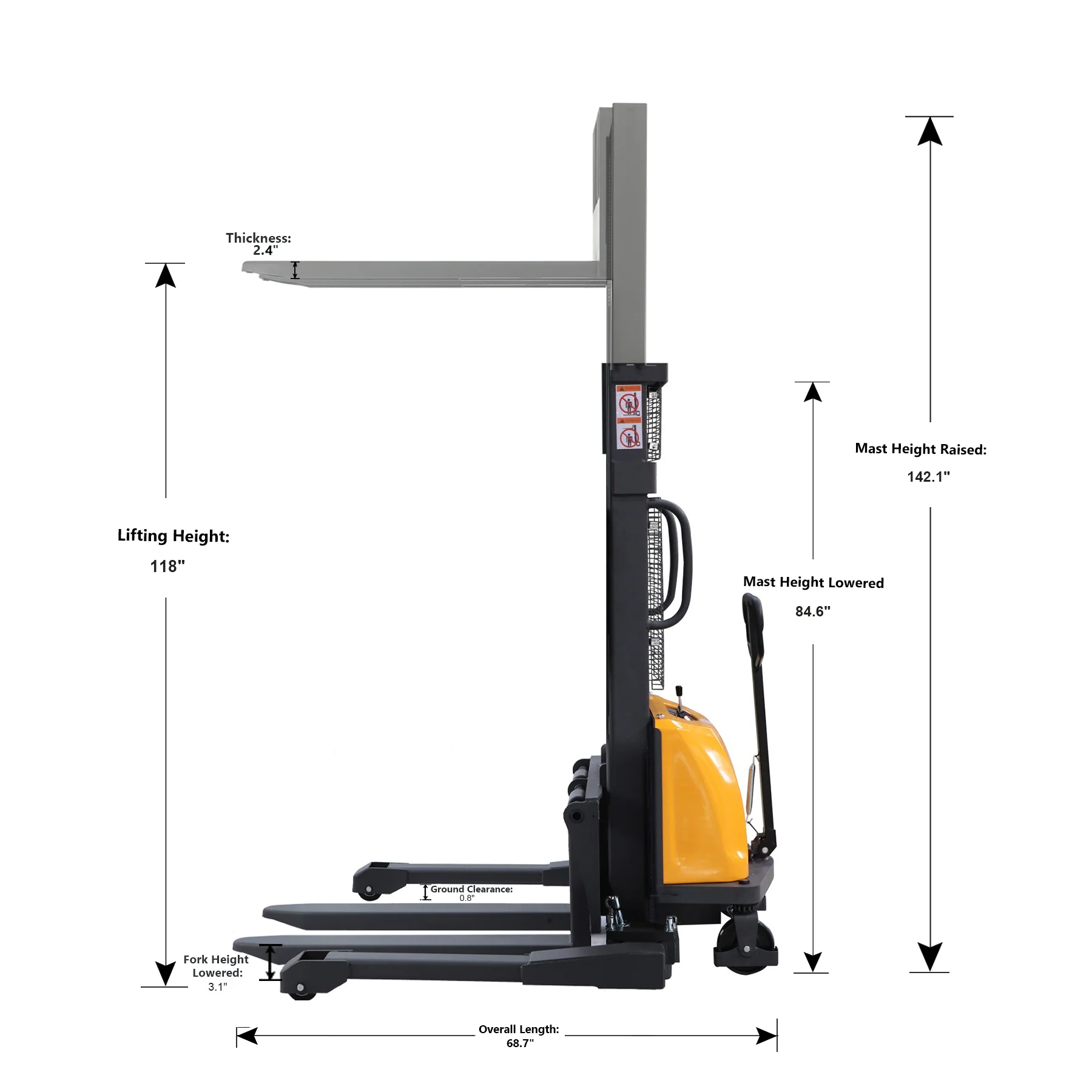

DIMENSIONS:

• Overall Length：68.7"
• Overall Width: 44½"-60.3"
• Recommended Aisle Width: 90"
• Turning Radius: 56.1"
• Mast Height Lowered: 84.4"
• Mast Height Raised: 140.3"
• Load Center: 15.7"
• Wheel Diameter: 7''/3.15''

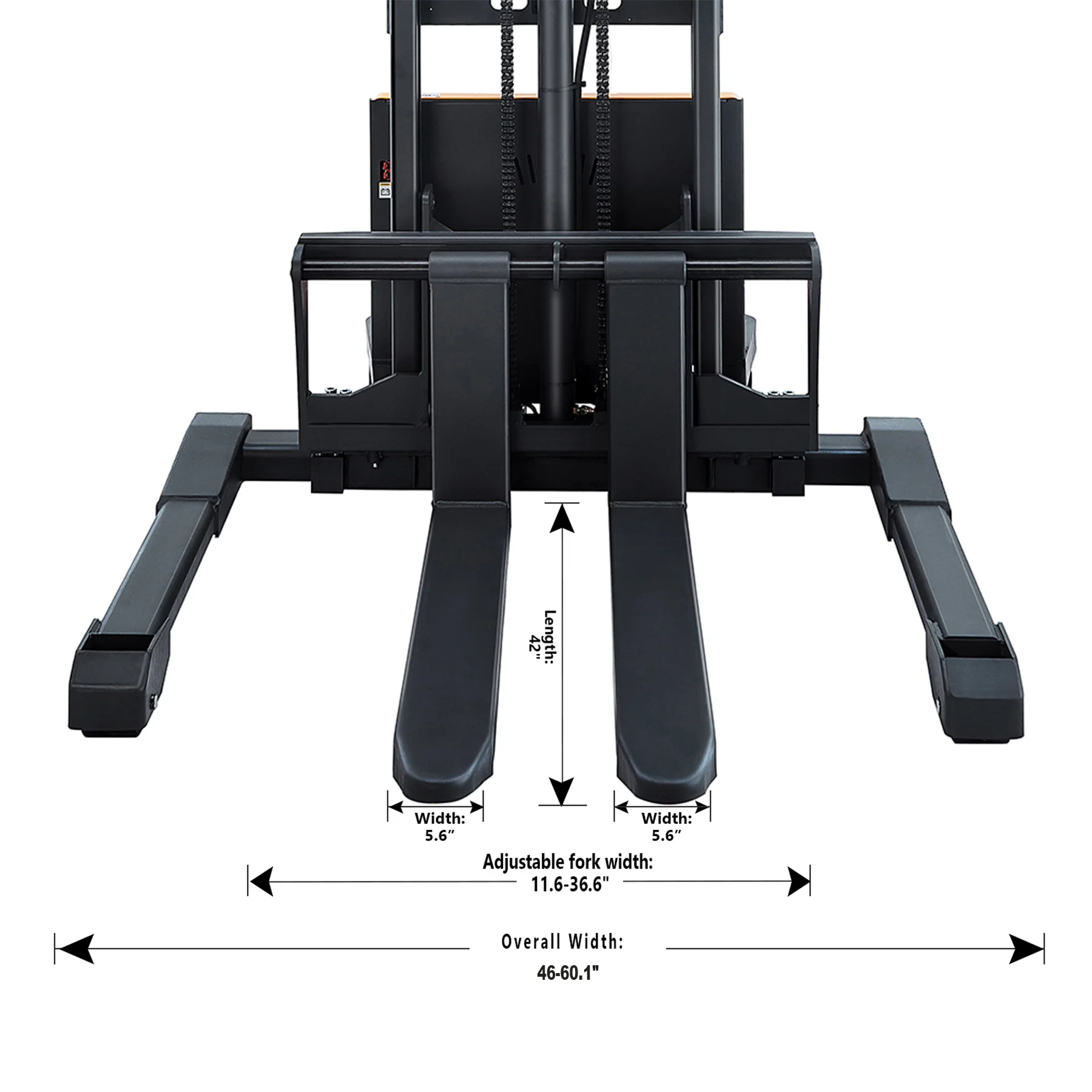

FORKS:

• Fork height, Lowered: 3.5''
• Thickness: 2.3''
• Width: 5.6''
• Length: 42''
• Adjustable fork width 11.8~36.6"

FEATURES:

• Foot pedal brake for safety and ramp usage.
• Equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.
• With hydraulic leveler control lifting and lowering, speed is adjustable.

SPEED:

• Lifting speed(laden/unladen) : 2/3.2mph
• Lowering speed(laden/unladen) : 3.9/3.5mph

SPECIFICATIONS:

• Not explosion proof.
• This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.

• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the truck once a month even it's not in use.
