Electric Walkie Pallet Truck
Powered navigation for urban deliveries, small markets and limited stock areas.

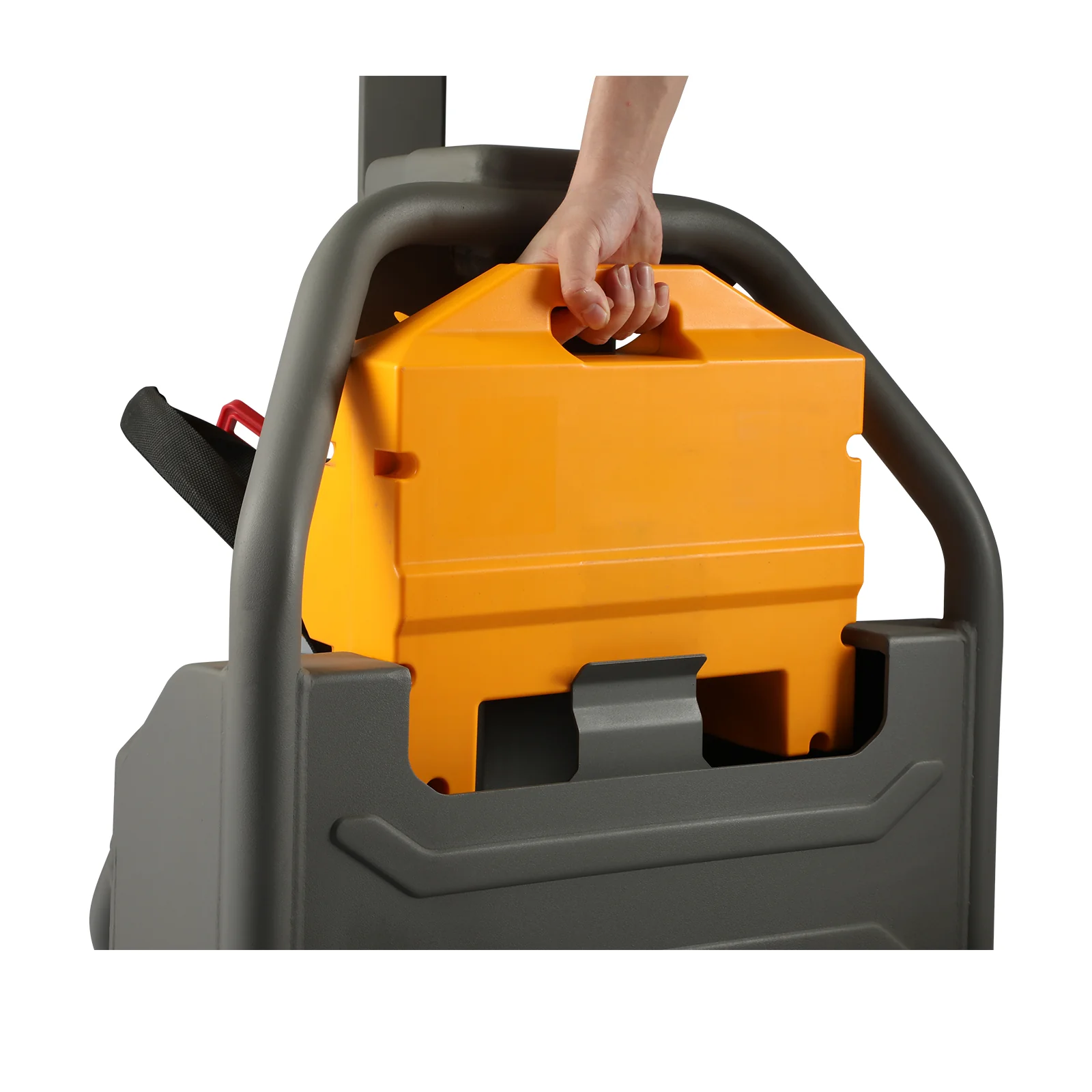

- 10 seconds to change battery reduces downtime.
- Push-button lift control and forward/reverse thumb wheels on handle.
- 4-6 hours service per charge. 3 hour charge time. It may vary depending on the usage and environment.
- 24 hours without break just need one extra battery.
- Gradeability(laden/unladen): 5%/20%
BATTERY POWERED PALLET TRUCKS
| MODEL NO. | FORK SIZE L x W | LOAD CAPACITY | WT.(LBS) | RECHARGEABLE BATTERY |
DRIVE MOTOR |
WHEEL DIAMETER |
PRICE EACH |
| A-1034 | 48x27" | 3,300 lbs. | 251 | 24V/20AH | 0.65 kw DC | 9.8"/3.15" | $1590 |
| A-1037 | 48x27" | 3,300 lbs. | 290 | 24V/20AH | 0.75 kw DC | 8.27/2.95" | $2000 |
*Includes one lithium ion battery and charger
REPLACEMENT PARTS
| MODEL No. | Description | Specification | WT.(LBS) | Price Each |
| S-1003 | Replacement Lithium Ion Battery | 48V/20AH | 22 | $579 |
| S-1010 | Replacement Charger | 48V/6A | 11 | $280 |
| S-1016 | Controller | PVM48S05 | $293 |
Unable to find what you're looking for? Please contact us.
DIMENSIONS:
Overall: 63.9" x 21.6"x47.2" (L xWx H)
FORKS:
- Actual: 45*21"
- Width: 6.3"
- Thickness: 1.8"
- Distance Between Forks (Inside): 14.37"
- Lowered height: 3.3''
- Raised height: 7½"
FEATURES:
Non-marking polyurethane wheels.
SPEED:
- Empty: 3.1mph
- Loaded: 2.98 mph
- 180° steering arc
CHARGING:
- Charger plugs into standard 110V-120V outlets.
- Fully charge battery before use to avoid damaging cells.
- Charge the truck once a month even it's not in use.
- LED light on the outside of the charger frame shows battery charge status.
- Green: Fully Charged
- Yellow Flash: Charging
SPECIFICATIONS:
- Not explosion proof.
- This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Normal Ambient temperature shall not be higher than +104°F and no lower than +14°F.
-
Click Here :A-1019 Detail Page
