• 1,200-watt drive motor, 2,200-watt lift motor.
• Forks are adjustable to fit most pallets.
• Curtis (US Brand) Controller Famous.

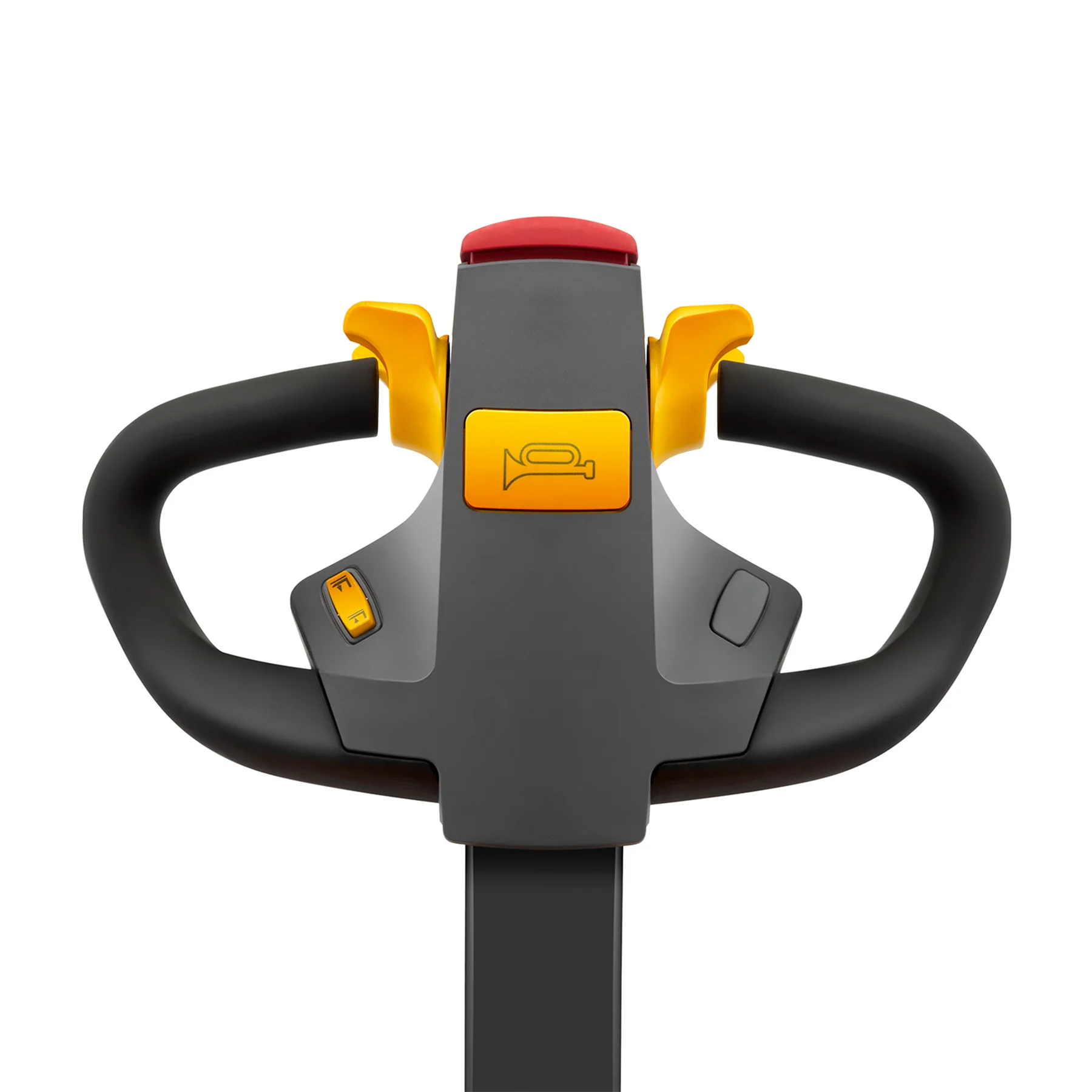

• German brand handle tiller.
• Multi-function display shows the working hours, battery status and low-voltage protection.

DIMENSIONS

• Overall Length：82½"
• Overall width：46½"-62.3"
• Recommended Aisle Width：98.4"
• Turning Radius：65.1"
• Load center：23.6"

MAST

• Mast Height Lowered：84.4''
• Max.Lifting height：118''
• Mast Height Raised：143.5''

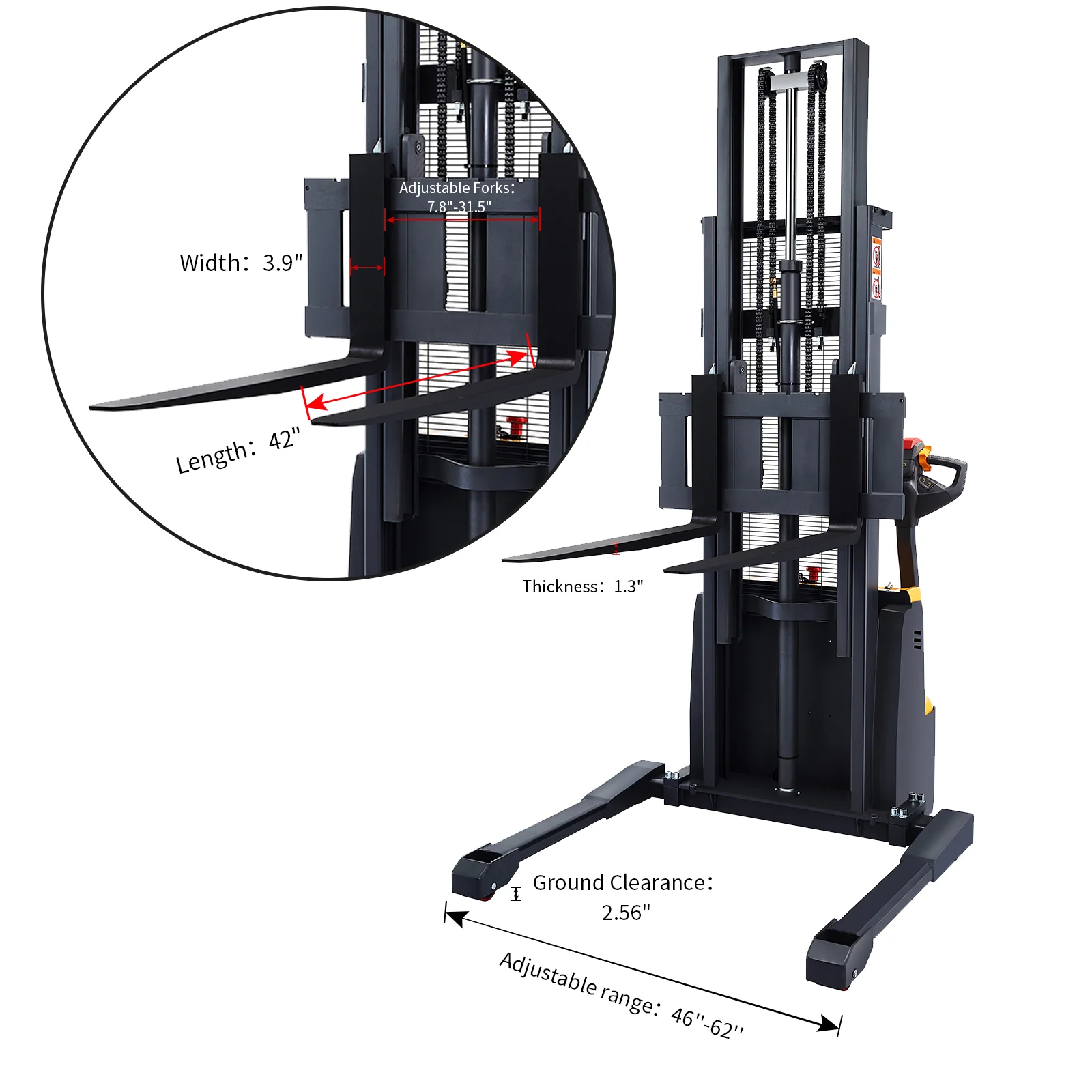

FORKS

• Thickness：1.3"
• Width：3.9"
• Length：42"
• Adjustable Forks：7.8-31.5"
• Lowered Height：2.8"

SPEED

• Travel Speed(laden/unladen)：3.6/3.7 mile/h
• Lifting Speed(laden/unladen)：3.5/6.3 inch/s
• Lowering Speed(laden/unladen)：5.9/6.3 inch/s

FEATURES

• Keep the rated capacity when lifting to 118''.
• Gradeability(laden/unladen): 6%/15%.
• 8 hours service per charge with strong power lead-acid battery capacity 24V/200AH.
• 8-10 hours charging time.
• Long handle structure makes it steering light and flexible.
• Vertical driving wheel, driving efficiency, easy installation& maintenance.
• AC frequency conversion traction motor, compact structure, good performance.
• With emergency stop switch and electricity lock button for safety.

SPECIFICATIONS

• Not explosion proof.
• This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Temperature range of working environment below 50˚F˜104˚F.
• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the forklift once a month even it's not in use.
