Small turning radius and strong power allow easy operation in tight spaces like car trunks, containers, urban deliveries, or small markets..

• Side-mounted battery design allows for a 10-second swap.;
• Push-button lift control and forward/reverse thumb wheels on handle.
• 3 hours service per charge. 3 hours charge time. Battery life may depend on the usage and environment.
• 24 hours continous use with 1 extra battery.
• Gradeability(laden/unladen): 5%/20% .
• Equipped with a display screen to clearly show battery status.

*BATTERY POWERED PALLET TRUCKS

MODEL NO.	FORK SIZE L x W	LOAD CAPACITY	WT.(LBS)	RECHARGEABLE BATTERY	DRIVE MOTOR	WHEEL DIAMETER	PRICE EACH
A-1034	48x27"	3,300 lbs.	251	24V/20AH	.65 kw DC	9.8"/3.15"	$1590
A-1021	45x21"	3,300 lbs.	288	48V/20AH	.65 kw DC	9.8"/3.15"	$2449

*Includes one lithium ion battery and charger

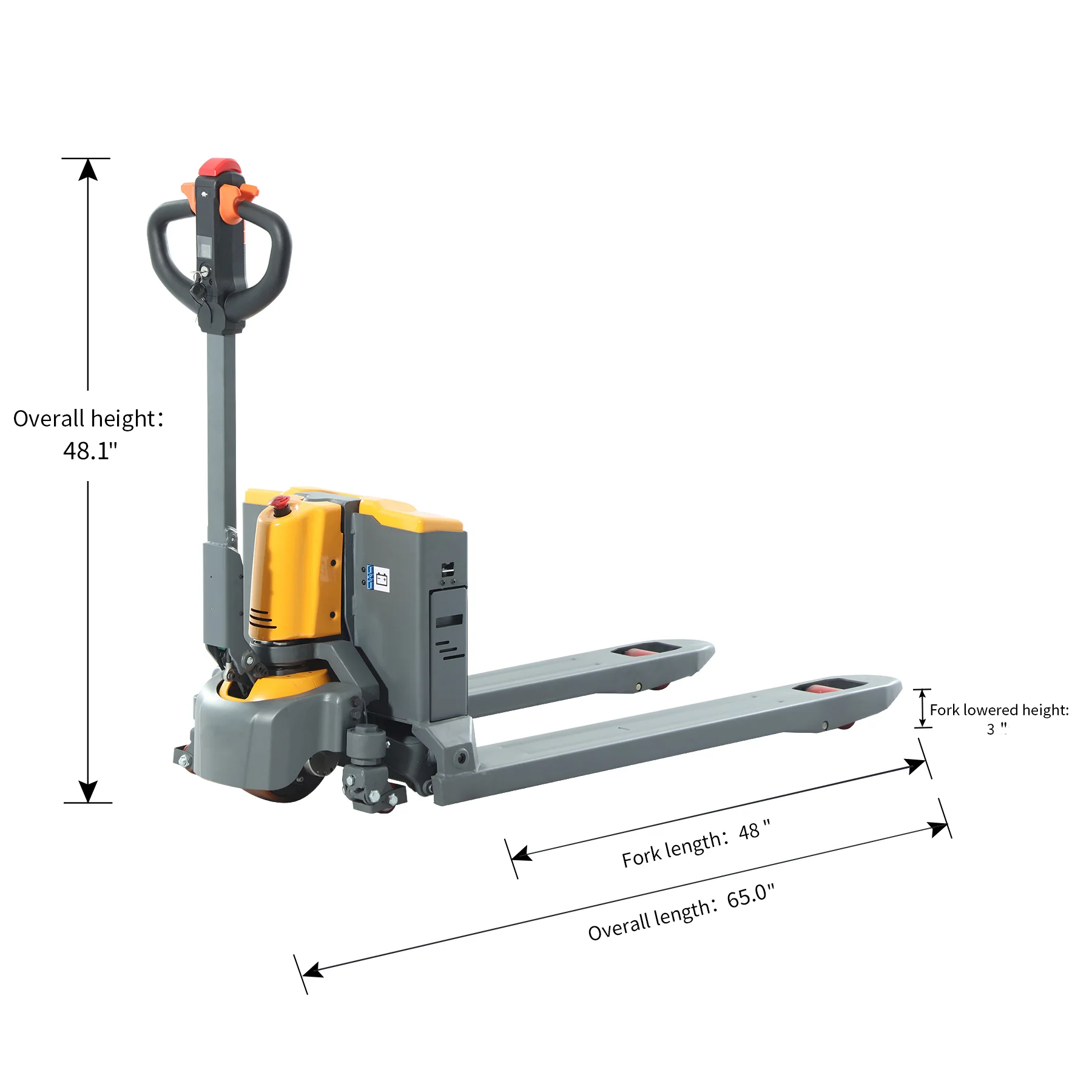

Dimensions

• Overall: 63.6" x 27"x44.7" (L xWx H)
• Lowered height: 3.1"
• Raised height: 4.3"

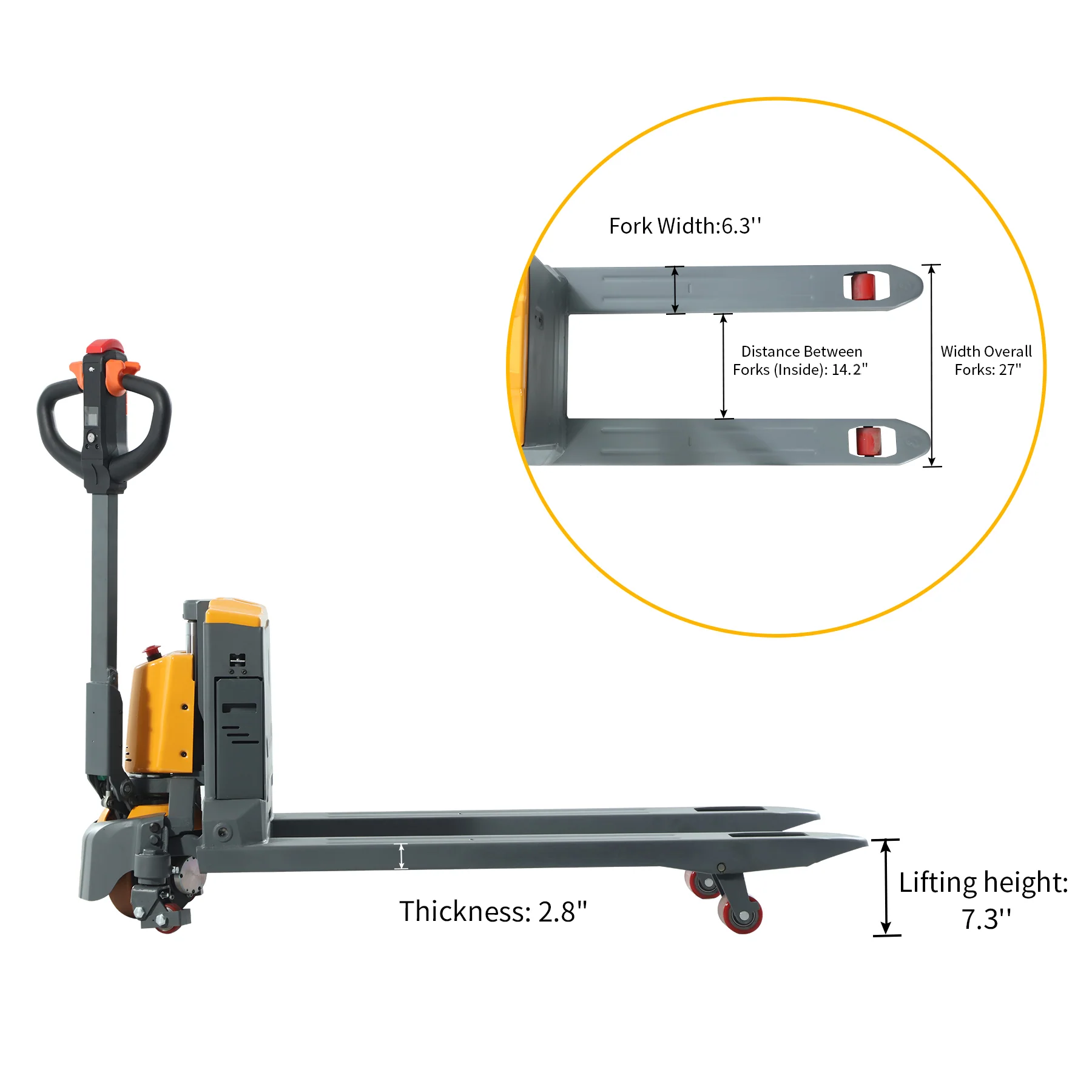

FORKS

• Actual: 48*27"
• Width: 6.3"
• Thickness: 2.8"
• Distance Between Forks (Inside): 14.17"

FEATURES

Non-marking polyurethane wheels. 180° steering arc.

SPEED

• Empty: 2.8mph
• Loaded: 2.67 mph

BATTERY

• Capacity: 24V/20Ah


CHARGING

• Charger plugs into standard 110V-120V outlets.
• Fully charge battery before use to avoid damaging cells.
• Charge the truck once a month even it's without use.
• LED light on charger shows battery charge status.
• Green: Fully Charged
• Red Flash: Charging

SPECIFICATIONS

• Not explosion proof.
• This truck is designed to be used on flat ground.Avoid uneven grounds with potholes,and large ramp.
• Temperature range of working environment 50˚F~104˚F.
